Jumper coupler

Jumper coupler

The jumper coupler is formed from a plug receptacle, a plug, and a jumper cable, and is a tool for electrically connecting between one railway car and another via the jumper cable. In addition to the control circuits and electrical power circuits that drive the railway car, it can also be used for security, signal, and service circuits, etc.
Product characteristics
  • Perfectly waterproof arc lock type coupler for 27 to 96-wire low-voltage circuits.
  • Compatible with 0.75 to 5.5 mm2 single-wire cable and composite cable. (Including shield wire)
  • In particular, it has much performance in railway car control circuit spanning between railway cars in severe environments.
  • The contact area structure is a butt type (fixed side flat, concave, and movable side spherical), for high contact pressure and guarantee of detaching and attaching up to 500 times.

YL10 Series

Round 27, 55, 76 wire jumper couplers. Mainly used for intermediate areas in fixed consists.
Product outline drawing
YL10-55

YL11 Series

Square 76, 96 wire jumper couplers. If the wire number is the same, it has the advantage of being more compact than the round type. Mainly used for intermediate areas in fixed consists.
Product outline drawing
YL11-76

YL6 Series

Product characteristics
  • Lightweight and compact 27/55-wire bolt connection-type connector.
  • Optimal for use in restricted space with multi-wire cable, and for outdoors or locations with working electrical wire.
Format YL10 YL11 YL6
Rated voltage (V) 100 100 100
Maximum current (A/pin) 10 10 10
Number of core wires 27/55/76 76/96 27/55
Waterproof performance iPX7 iPX7 iPX7
type of contact Abutting Abutting Abutting
Coupling method Tightening arm method (Arm lock) Tightening arm method (Arm lock) Bolt coupling
Suitable wiring conductor size (mm2) 0.75 to 5.5 0.75 to 5.5 0.75 to 5.5
Number of detachable times 500 times 500 times 500 times
Characteristics Wire swing resistance Wire swing resistance Wire swing resistance
Main utilizations Inter-car control circuit Inter-car control circuit Inter-car control circuit
Product outline drawing
YL6-27
YL6-55

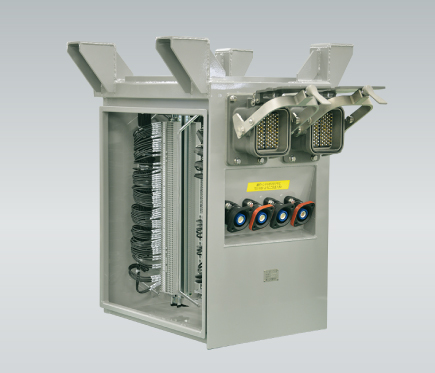

Junction box with jumper coupler

The junction box with jumper coupler involves mounting the jumper coupler on a junction box to complete up to the wiring.
A terminal block is set internally, enabling efficient wiring operations.
